600×1200mm Cylindrical Marine Fenders Shock Absorption Durable Low Maintenance

Brand Name : Hongruntong Marine

Model Number : HM-CMF03

Certification : ISO, BV, ABS, DNV, LR, SGS, CCS, RMRS

Place of Origin : China

MOQ : 1

Price : USD13 to 700 Per Piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5880 Pcs Per Month

Delivery Time : 5-6 Work Days

Packaging Details : Wooden Pallet, Wooden Case

Product Name : Cylindrical Marine Fenders

Material : NBR

Standard : PIANC2002, ISO9001

Color : Black or Customized

Size : Customized

Part : Hinge

Package : Wooden Pallet, Wooden Case

Application : Efficient Impact Absorption

Feature : Easy to Install

Contact Now

600×1200mm Marine Fender Shock Absorption Durable Low Maintenance

Description

Designed for high-impact areas such as busy ports and heavy-duty docks, this cylindrical marine fender provides superior protection for large commercial ships, tankers, and tugs. Constructed from wear-resistant rubber with reinforced cores, it delivers exceptional energy absorption with minimal reaction force. Available in diameters up to 1200mm and lengths up to 3000mm, it can be installed horizontally for continuous protection or vertically for flexible mooring. The fender's solid rubber body ensures a long lifespan with excellent resistance to saltwater, UV rays, and ozone. Ideal for new installations or as a retrofit option, it provides durable and efficient protection while minimizing maintenance downtime.

Specifications

Product Name Cylindrical Marine Fenders
Material Natural Rubber, NBR, EPDM
Standard PIANC2002, HGT2866-2016
Size ID: 75-1000mm; OD: 150-2000mm or Customized
Color Red, Yellow, Blue, Black, White etc
Hardness 55 Shore A
Processing Service Moulding, Cutting
Tensile Strength ≥18 MPA
Elongation at break ≥400%
Feature Environmentally Friendly
Application Dock, Port, Quay, Boat
Advantage High Resilience
Quality Long Lasting Life
Function Shock Absorption
Service CustomOEM ODM Service
Packaging

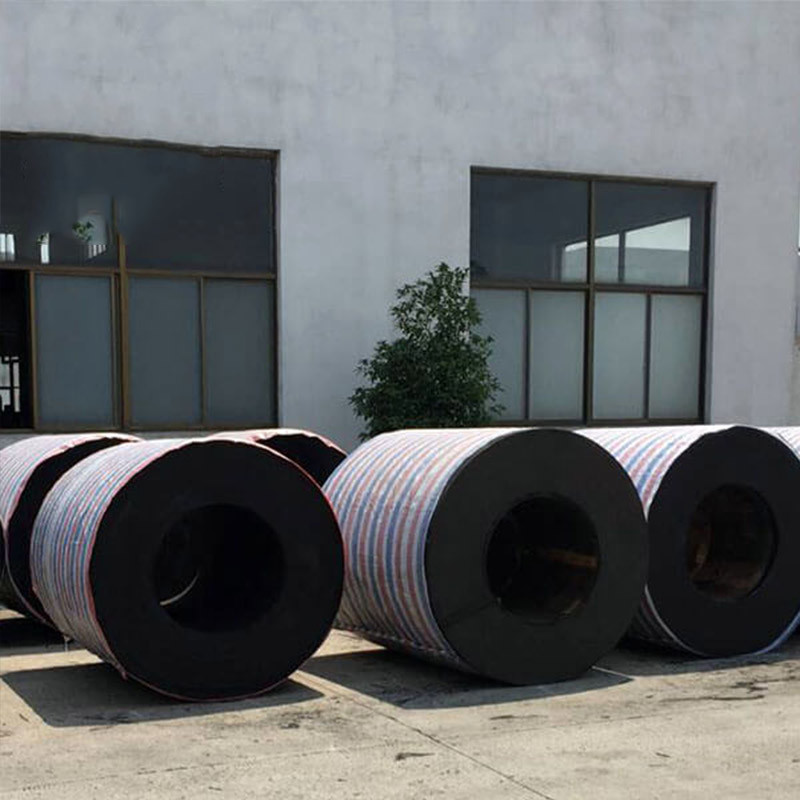

Inner packing: A. Separate, Each piece with a care label + Tarpaulin
B. Batch, Each piece is packed in a transparent plastic film
Outer packing: Tarpaulin or Plastic film

Model Length Inside Diameter Outside Diameter
Cylindrical [mm] [mm] [mm]
HM-CMF150 Customized Length 75 150
HM-CMF200 100 200
HM-CMF250 125 250
HM-CMF300 150 300
HM-CMF400 200 400
HM-CMF500 250 500
HM-CMF600 300 600
HM-CMF700 350 700
HM-CMF800 400 800
HM-CMF900 450 900
HM-CMF1000 500 1000
HM-CMF1100 550 1100
HM-CMF1200 600 1200
HM-CMF1400 700 1400
HM-CMF1600 800 1600
HM-CMF700 850 1700
HM-CMF800 900 1800
HM-CMF1900 950 1900
HM-CMF2000 1000 2000

600×1200mm Cylindrical Marine Fenders Shock Absorption Durable Low Maintenance

Features

No Internal Pressure Required
Solid rubber construction eliminates the risk of deflation or air leakage, offering maintenance-free operation.

Environmentally Friendly Materials
Made with non-toxic, recyclable rubber compounds that comply with international environmental and safety standards.

Reduced Hull Pressure Points
The round shape distributes energy evenly, minimizing concentrated stress points on vessel surfaces.

Low Maintenance Requirements
Does not require frequent inspections or part replacements, lowering lifecycle costs significantly.

Applications

Ferry terminals

Tugboat docks

Ro-Ro ramps

Advantages

Extensive Range of Sizes and Configurations Available
Our cylindrical marine fenders are available in diameters from Ø300 mm to Ø1200 mm, with lengths up to 3,000 mm or more. We also offer hollow-core or solid designs, with or without inserts, to suit various berthing energy requirements and structural designs.

State of the Art Manufacturing Equipment
We utilize advanced vulcanization, extrusion, and molding machinery to ensure product consistency, high bonding strength, and seamless surface finish. Our investment in automation and precision tooling enhances production efficiency and reduces defects.

Global Export Experience with Proven Performance
Our products have been exported to more than 50 countries and regions including Southeast Asia, the Middle East, Europe, South America, and Africa. We have worked with major ports, government maritime authorities, and global EPC contractors, delivering fenders that perform reliably in the field.

Large Scale Production Capacity for Bulk Orders
With a modern production facility covering thousands of square meters, we can produce high volumes of fenders within short lead times. We maintain stable output levels year-round, ensuring we meet urgent project deadlines and continuous supply demands.

FAQ

1. What is the difference between solid and hollow cylindrical fenders?
Solid fenders offer higher energy absorption and are suitable for heavy-duty applications. Hollow types are lighter and more flexible for smaller vessels.

2. Can fenders be delivered with accessories?
Yes, we can supply mounting hardware such as chains, brackets, anchor bolts, and protective sleeves as needed.

3. What is the lead time for manufacturing?
Lead time typically ranges from 15 to 30 days depending on order volume and customization.

4. Can the fenders be installed in cold or tropical climates?
Absolutely. Our rubber compounds are designed to perform in both extreme cold and heat without losing elasticity or strength.
